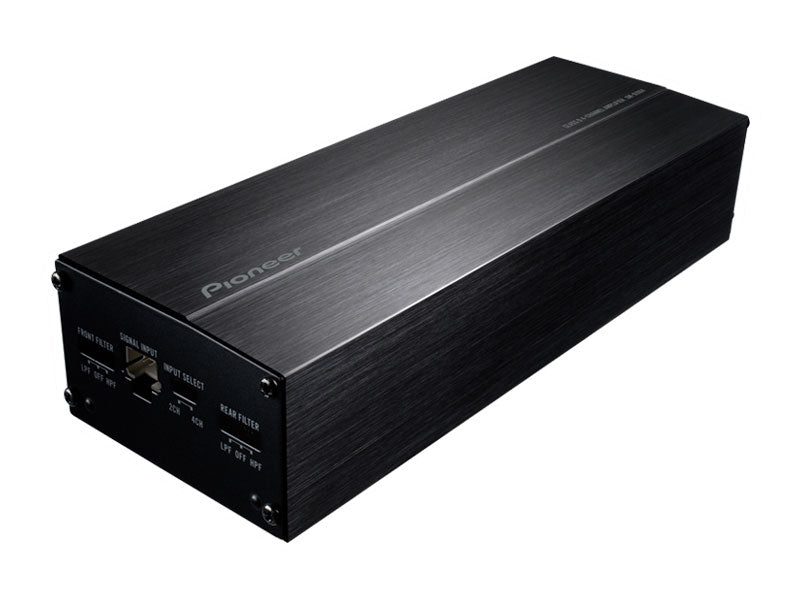

Pioneer GM-D1004 4-Channel - Class D, 400w Max Power - Compact Bridgeable Amplifier
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
- 400 Watts Max Power
- Variable High Pass and Low-Pass Filters
- Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
GM-D1004 4-channel amplifier will power your front and rear speakers with 45 watts RMS each which is almost three times the power of a typical factory radio or aftermarket receiver. This compact amplifier runs so efficiently that it can often get its power from the same circuit as your receiver. Its tiny size accommodates installs almost anywhere, even behind the dash in many vehicles. Bridge a couple of the GM-D1004's channels together and drive a subwoofer with 90 watts while still powering a pair of front speakers. Universal harnesses allow signaling from an aftermarket receiver's RCA outputs or a factory radio's speaker wiring. This amplifier is CEA-2006 compliant and is a class FD technology.
Compact Design
Whether you call it compact or micro the GM-D1004 will wear the name proudly. With the size equivalent to slightly smaller than a standard red brick, youll have no problem finding a place to mount it or conceal it behind our short chassis Digital Media Receivers stereos, glove box or even in the center console.
Small But Powerful
It may be small but dont let the size fool you. This Receiver is capable of delivering up to 400 Watts of maximum output and is more than comfortable providing 45 Watts of power per channel, thats more than enough juice to improve the performance of your factory or aftermarket speakers.
Variety of Installs
Today more and more music lovers are taking their music off-road and finding ways to enjoy their music recreationally. With this amplifier you can add great sound to your motorcycle, ATV, or boat where a conventional size amplifier may not fit.
Flexible Connectivity
For DIYers, this amplifier is not only small and powerful but its easy to install. Simply connect power and ground at the radio and get more installation flexibility using hi-level or low-level inputs with a signal sensing remote turn on so you can use it in combination with a factory or aftermarket headunit.
Whats in the Box
- 4-Channel amplifier
- One 15 amp mini blade fuse (installed)
- 8" Line-level input harness x 4
- 39" Speaker-level input harness
- 39" Power/Output harness
- 2 Mounting brackets
- Two 3/4" Self-tapping screws
- Owner's manual (English/ French/ Spanish)
- 1 Year Warranty sheet
Standards
- Yes
Performance
- 2 ohm to 8 ohm allowable
- 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2-Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
- 75 dB
- 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
- LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
- -12db/oct (A/B Ch)
- 80 Hz
- -12 dB/octave
- 10 Hz to 40 kHz
- 10Hz to 40kHz (+0dB,-3dB) A/B Ch
- 15 A
- 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
- 4-Channel
- 74 dBA (Reference: 1 W into 4 ohm)
- Yes<..
