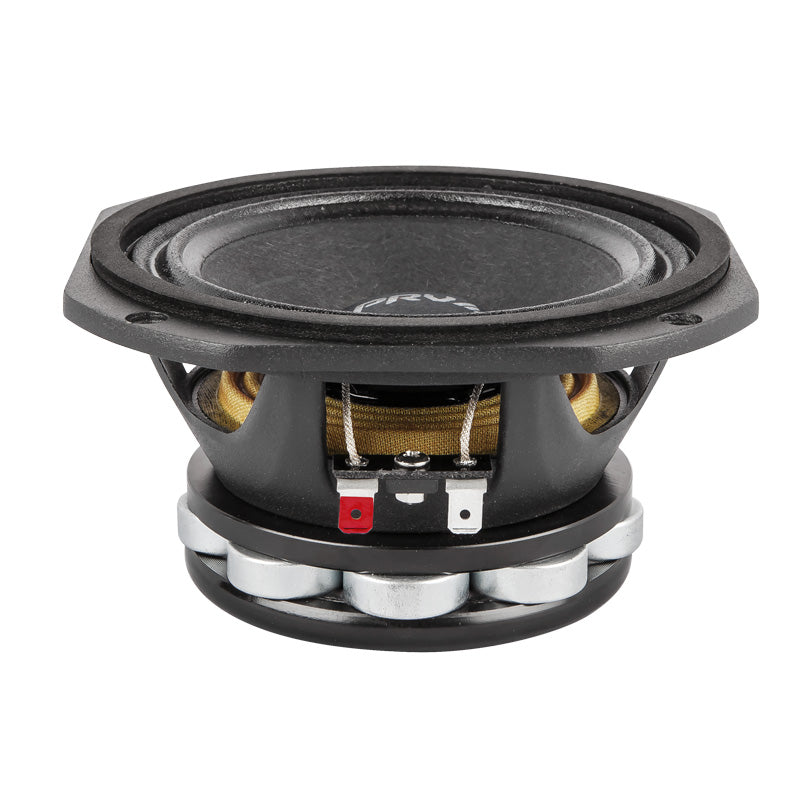

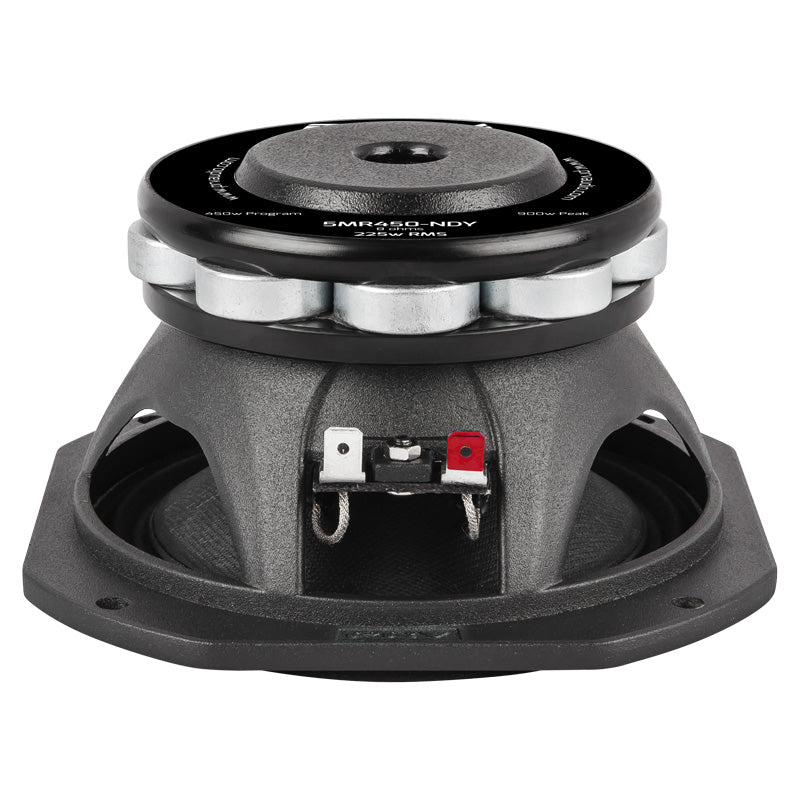

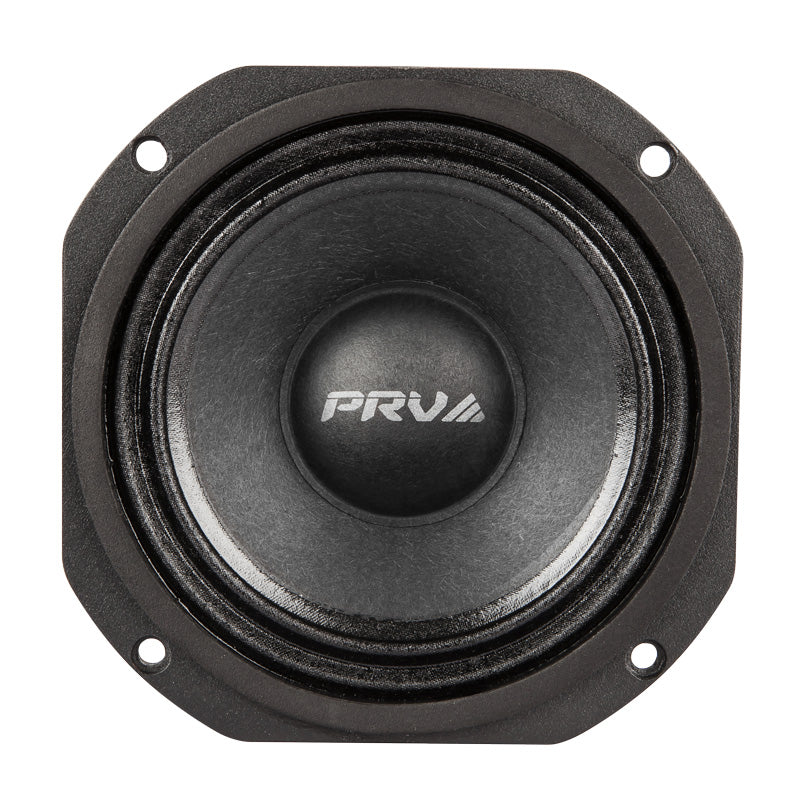

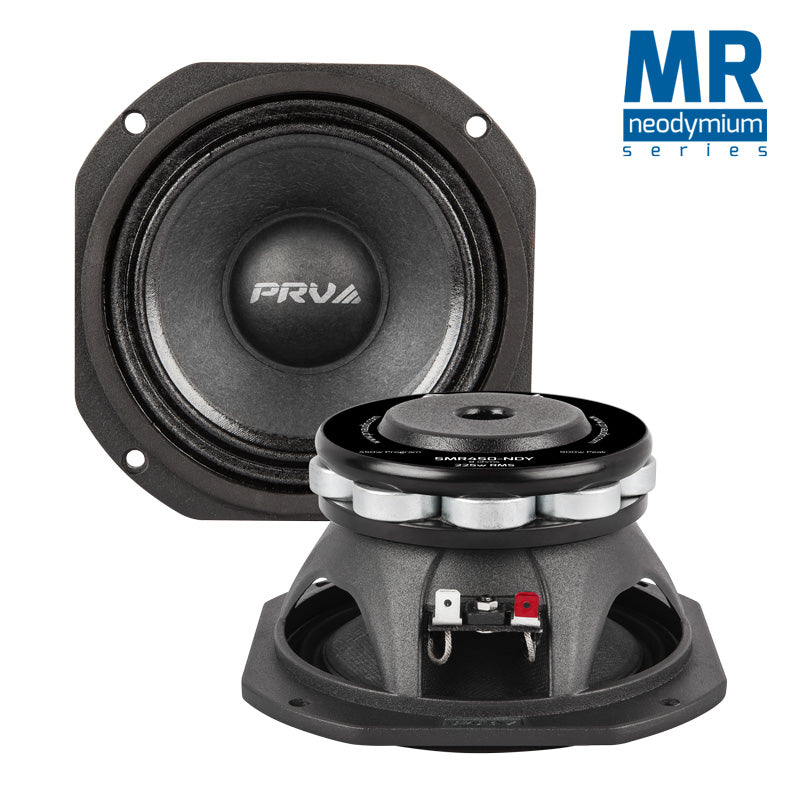

PRV Audio 5MR450-NDY 5.25" Neodymium Midrange Loudspeaker
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
The PRV Audio Pro Audio Loudspeaker, 5MR450-NDY midrange woofer offers outstanding durability and a smooth midrange response through 16kHz.
This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.
The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment.
Its light weight of only 2.65 lbs helps keep your enclosures light and is a great use for use for car doors and installers looking for high SPL midrange and upper midrange responses.
For car audio applications, a 4 ohm model is also available.
- Nominal Impedance: 8 Ohm
- 450 Watts RMS Music Power Handling, with a 94 dB Sensitivity, capable of generating a lot output at wide frequency range!
- Voice Coil Diameter: 1.5?
- Ideal solution for compact full-range applications demanding high acoustic output
GENERAL SPECIFICATIONS
Nominal Diameter | 5? (127 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 225 Watts |
Program Power | 450 Watts |
Sensitivity 2.83V at 1m | 94 dB |
Recommended Hi Pass Crossover* *For Full Power Handling |
290 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 160- 16,000 Hz |
Voice Coil Diameter | 1.5? (38.1 mm) |
Voice Coil Wire | Copper |
Voice Coil Winding Depth | 9.8 mm |
Former Material | Kapton |
Magnetic Gap Depth | 5.8 mm |
Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 1.47 l |
Excursion (mathematical)*** | Xmax | 3.45 mm |
Free Air Resonance | Fs | 159.0 Hz |
Mechanical Factor | Qms | 22.26 |
Electrical Factor | Qes | 0.66 |
Total Factor | Qts | 0.64 |
Cone Area | Sd | 95 cm |
Mechanical Mass | Mms | 8.60 g |
Bl Factor | Bl | 9.42 Tm |
Dc Resistance | Re | 6.9 Ohms |
Inductance | Le | 0.03 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 8.07 g |
Mechanical Compliance | Cms | 0.116 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
