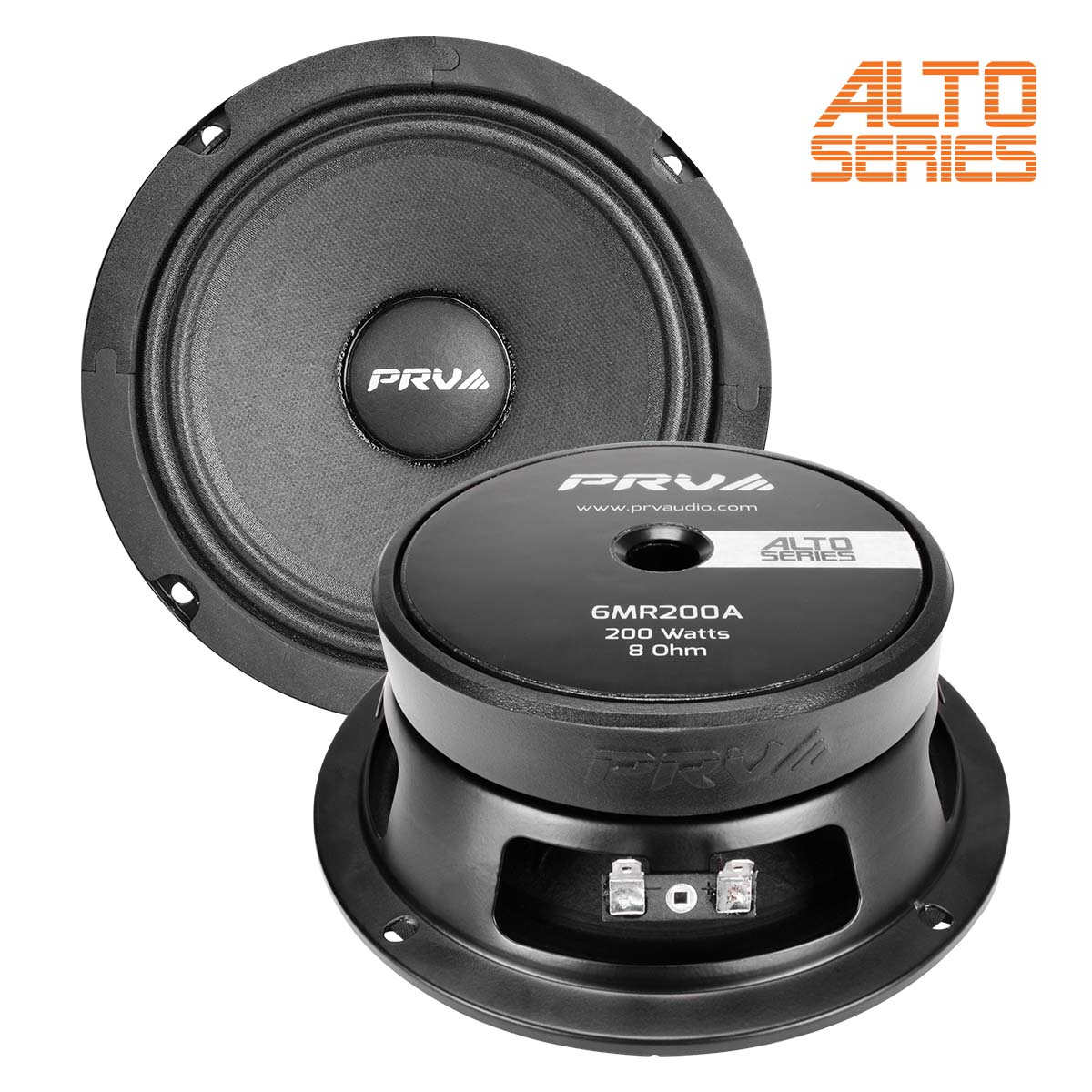

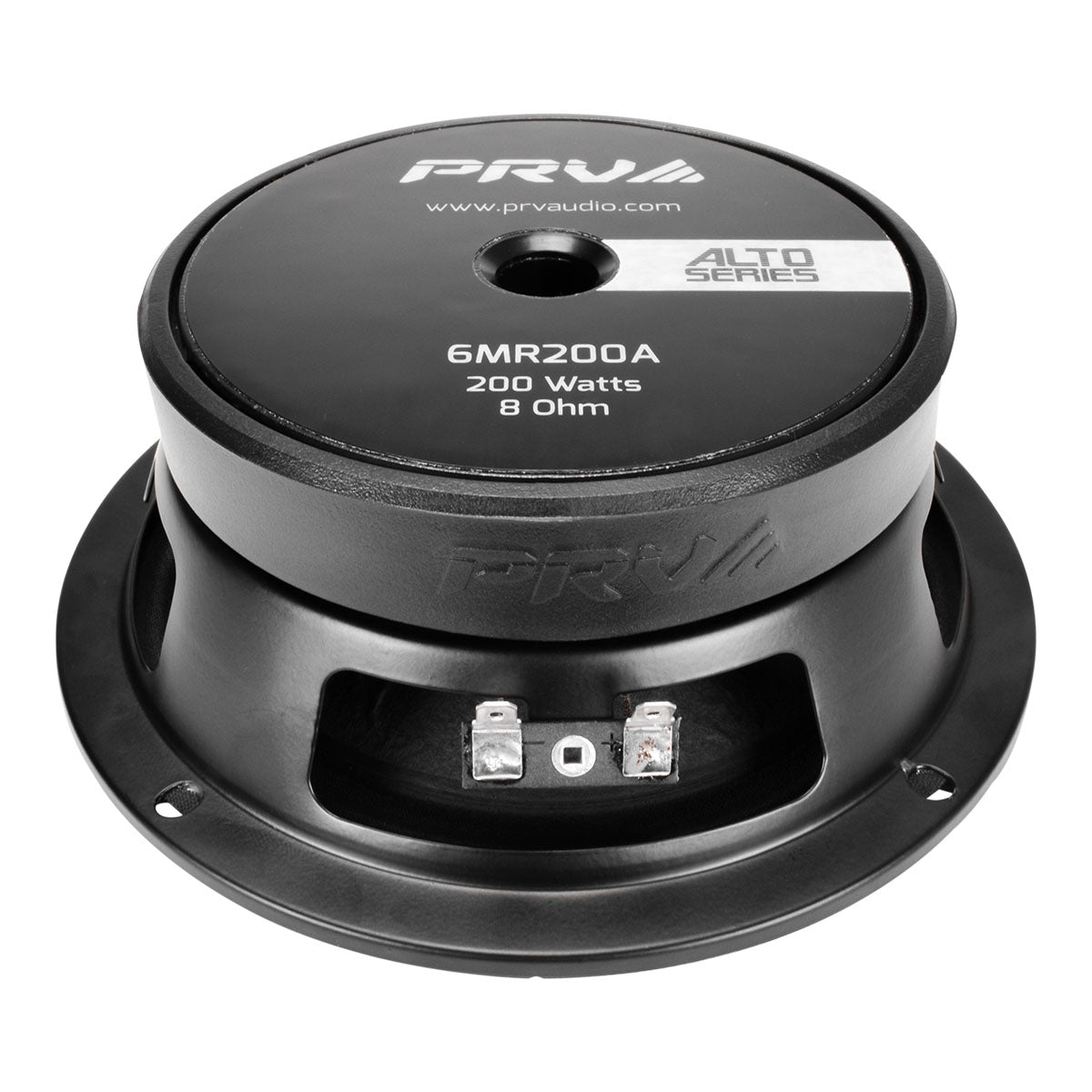

PRV Audio 6MR200A 6.5" Midrange Loudspeaker
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
PRV Audios ALTO Series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency.- 6.5? PRO audio Midbass speaker designed for Low Frequencies with shallow profile
- 200 watts RMS program power gives capability of high acoustical output with small amplifier
- Impressive choice for high output home, car, and professional audio systems 8 Ohm Impedance
- Smooth response through the mid-bass and vocal range at at loudest volumes

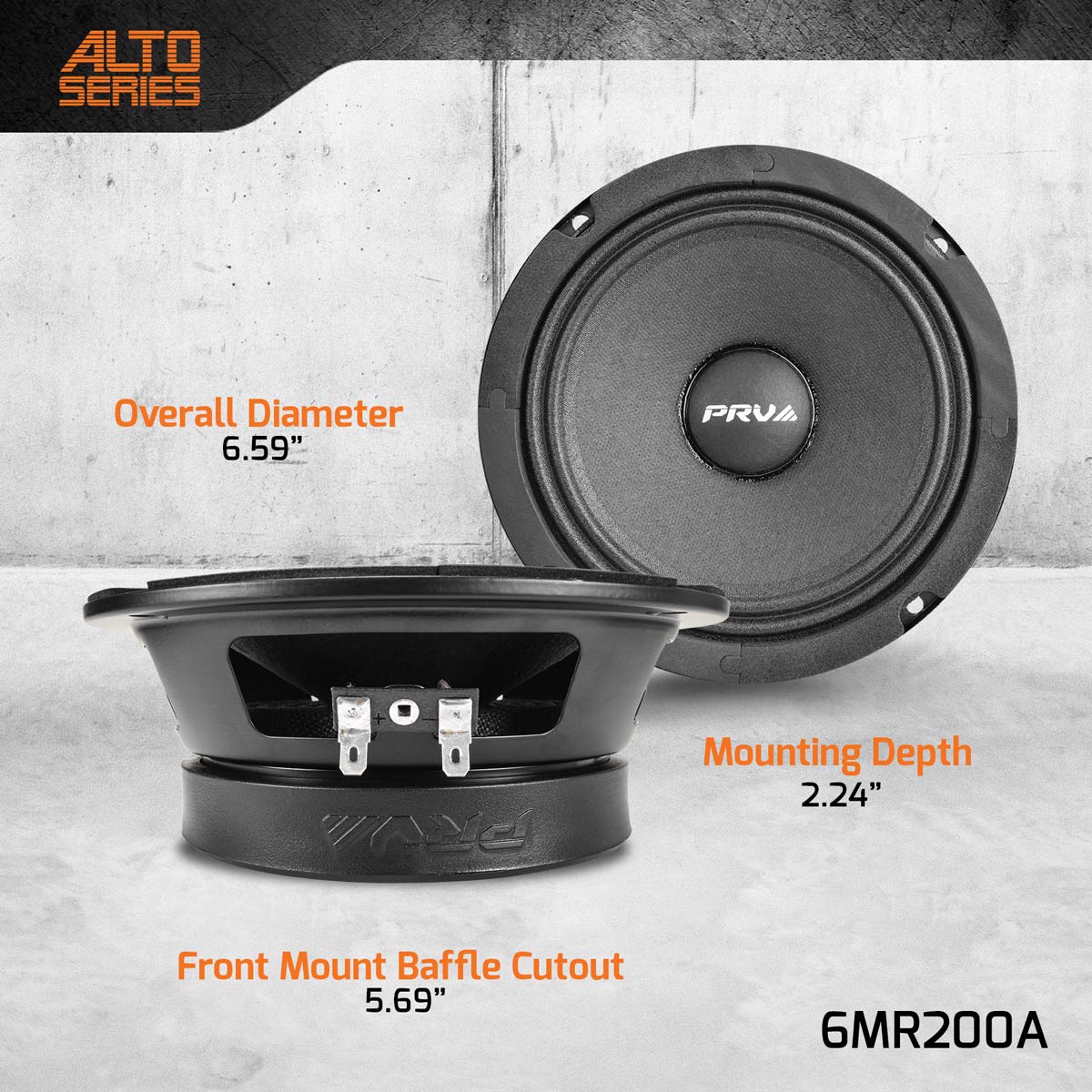

The 6MR200A midrange speaker is the evolution of the 6MR250A, this unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24? mounting depth.
This professional midrange speaker is purpose-built to cover from 100 Hz to 6,000 Hz in three-way speakers, but also works great as a midrange in a bass guitar speaker, as well as a woofer in two-way satellite speaker concept or even as a high output car audio door speaker.
PRV 6.5? Midrange Speaker 6MR200A 200 Watts / 8 Ohm PRO Audio Loudspeaker

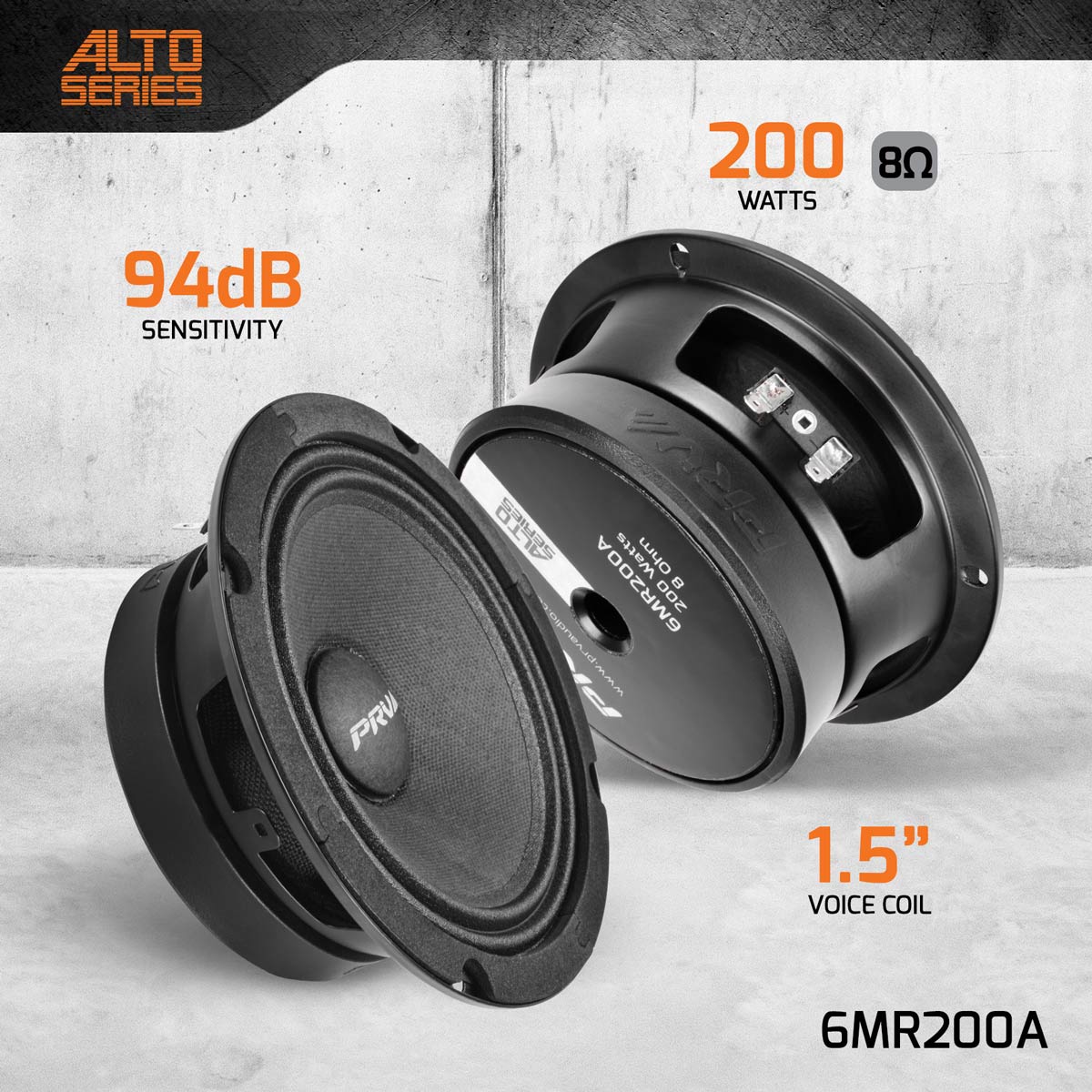

GENERAL SPECIFICATIONS
Nominal Diameter | 6? (152 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 100 Watts |
Program Power | 200 Watts |
Sensitivity 2.83V at 1m | 94 dB |
Recommended Hi Pass Crossover* *For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 155 11,000 Hz |
Voice Coil Diameter | 1.5? (38 mm) |
Voice Coil Wire | Copper |
Voice Coil Winding Depth | 8.0 mm |
Former Material | Kapton |
Magnetic Gap Depth | 5.5 mm |
Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 3.16 l |
Excursion (mathematical)*** | Xmax | 2.62 mm |
Free Air Resonance | Fs | 114.1 Hz |
Mechanical Factor | Qms | 13.16 |
Electrical Factor | Qes | 1.28 |
Total Factor | Qts | 1.17 |
Cone Area | Sd | 137 cm |
Mechanical Mass | Mms | 10.1 g |
Bl Factor | Bl | 6.27 Tm |
Dc Resistance | Re | 5.5 Ohms |
Inductance | Le |
