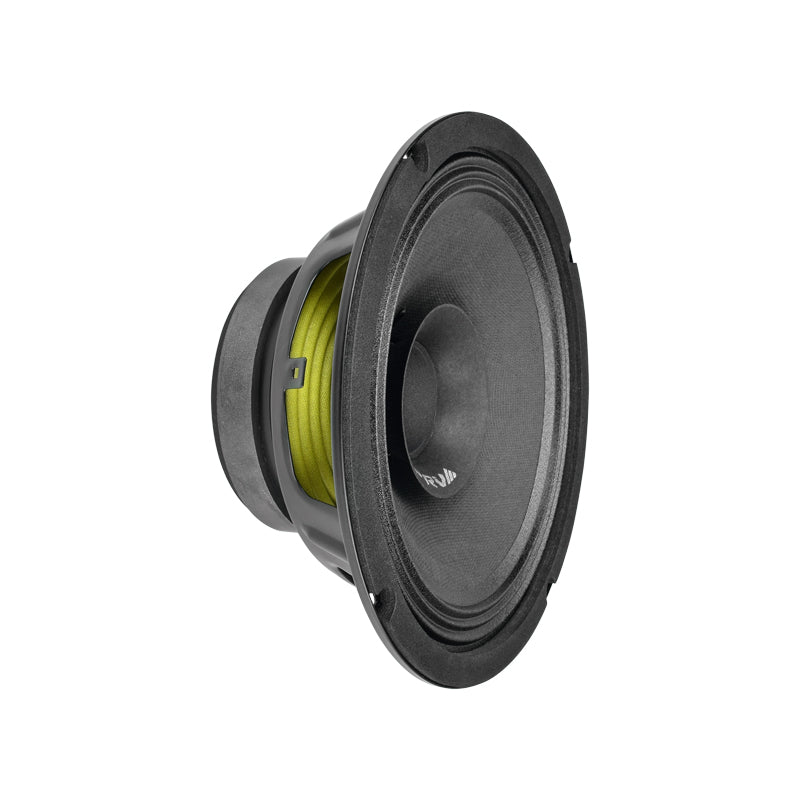

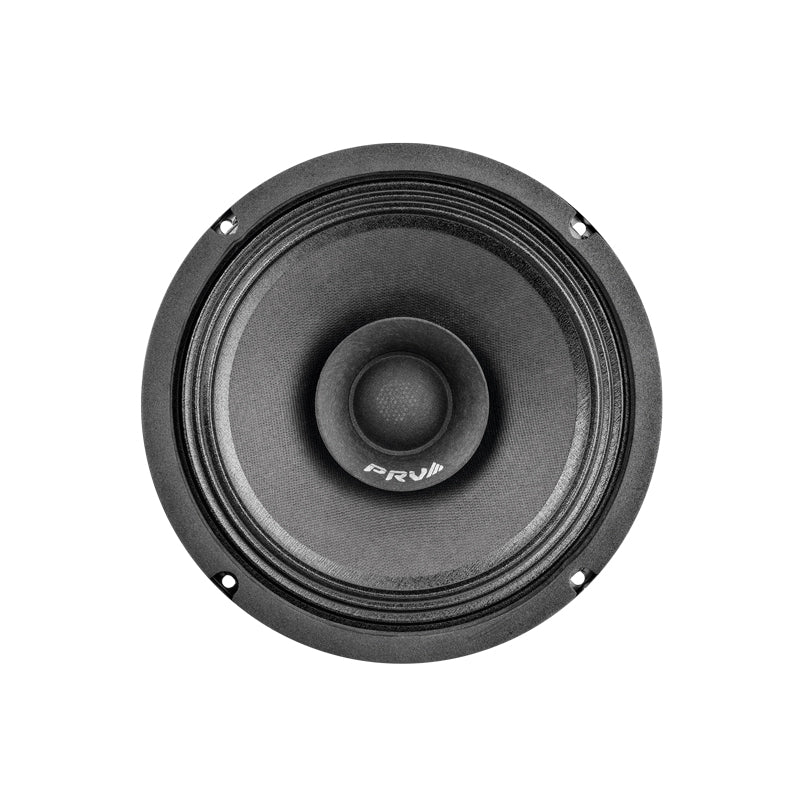

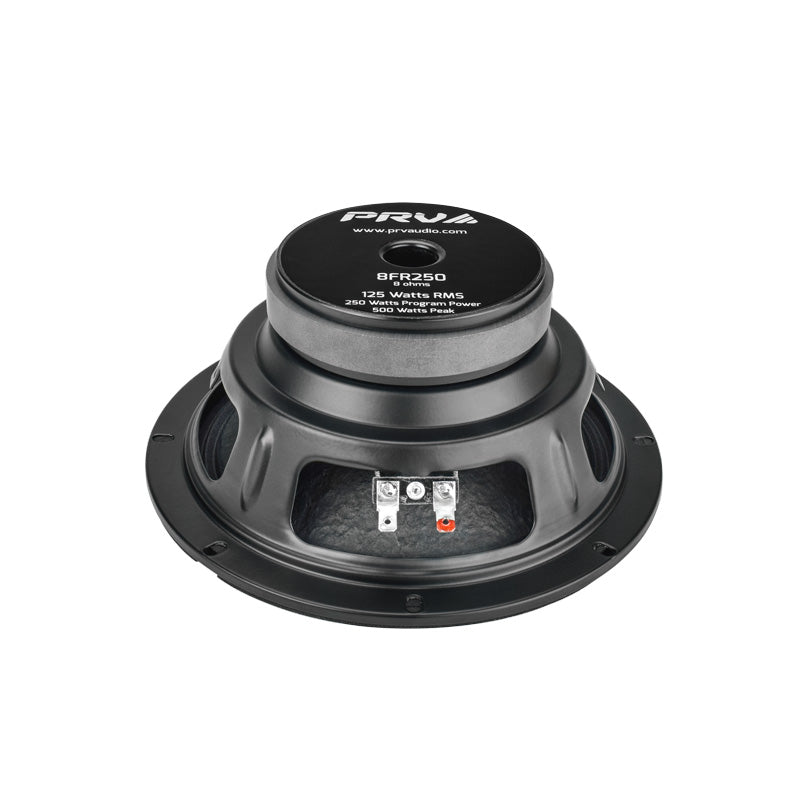

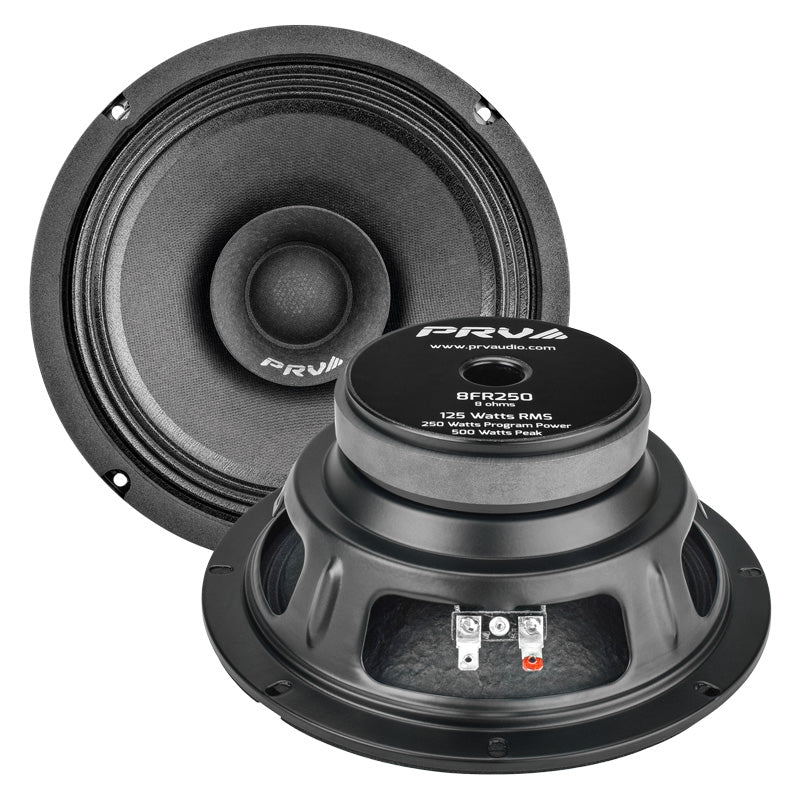

PRV Audio 8FR250 8" Fullrange Loudspeaker
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
The PRV Audio FR Series sets a new standard of value in high-performance Fullrange drivers. The 8FR250 full-range driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.
This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 50 Hz to 18,000 Hz.
The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 93.5 dB of sensitivity.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 125 Watts
- Program Power: 250 Watts
- Sensitivity (1W/1m): 93.5 dB
- Voice Coil Diameter: 1.5?
GENERAL SPECIFICATIONS
Nominal Diameter | 8? (203 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 125 Watts |
Program Power | 250 Watts |
Sensitivity 2.83V at 1m | 93.5 dB |
Recommended Hi Pass Crossover** **For Full Power Handling | 75 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 50 18,000 Hz |
Voice Coil Diameter | 1.5? (38 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 10.0 mm |
Former Material | Kapton |
Magnetic Gap Depth | 6.0 mm |
Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 21.2 l |
Excursion (mathematical)*** | Xmax | 3.50 mm |
Free Air Resonance | Fs | 75.6 Hz |
Mechanical Factor | Qms | 14.07 |
Electrical Factor | Qes | 1.10 |
Total Factor | Qts | 1.02 |
Cone Area | Sd | 227 cm |
Mechanical Mass | Mms | 15.0 g |
Bl Factor | Bl | 6.53 Tm |
Dc Resistance | Re | 6.6 Ohms |
Inductance | Le | 0.275 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 13.1 g |
Mechanical Compliance | Cms | 0.294 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Overall Diameter | 8.23? (209 mm) |
Front Mount Baffle Cutout | 7.12? (181 mm) |
Mounting Depth | 3.33? (84.5 mm) |
Overall... |
