PRV Audio WG175Py-Nd-4 1" Exit Compression Driver + Horn
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features

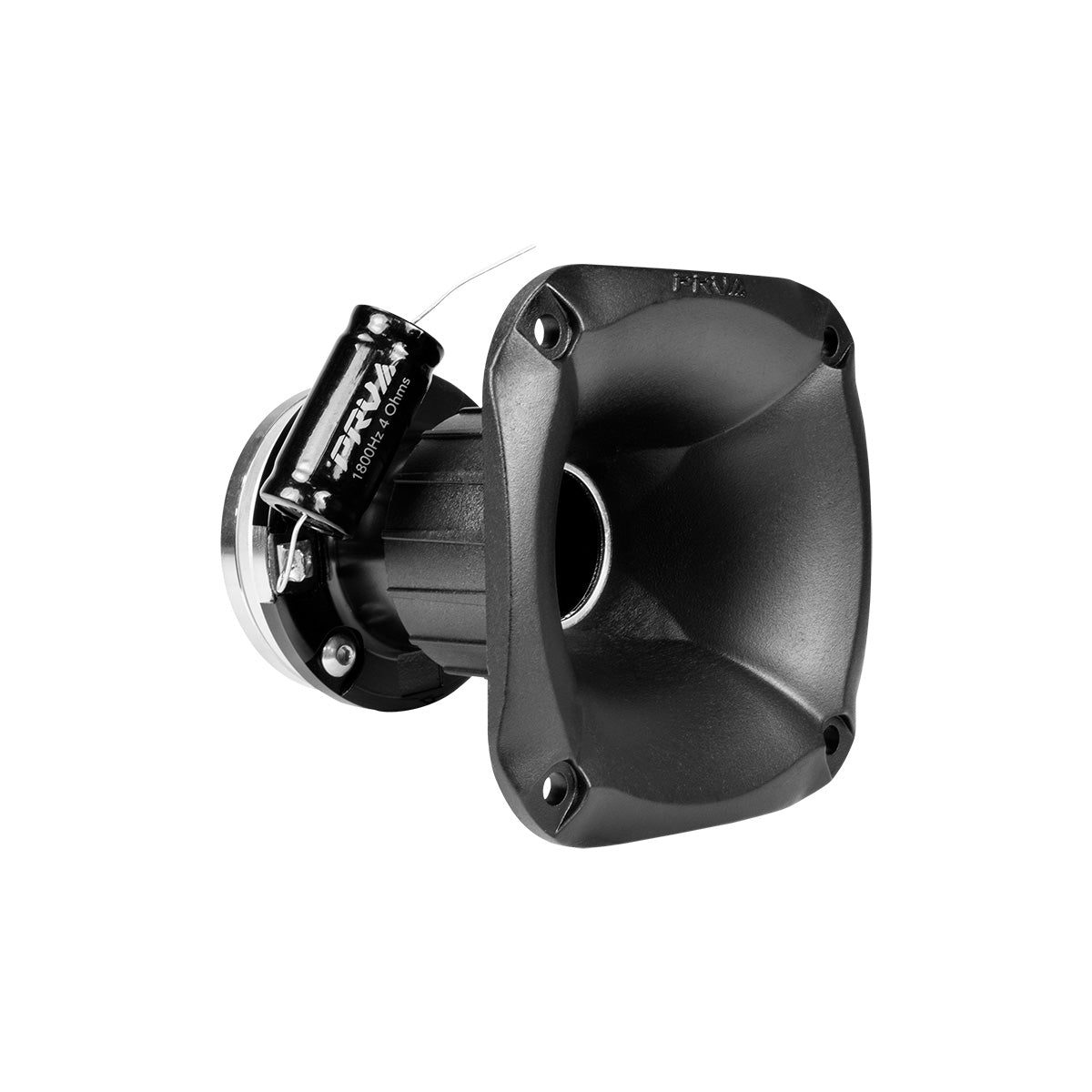

The WG175Py-Nd-4 is a Mini Horn Driver featuring a 1? Exit Polyimide Pro Audio Compression Driver with a 1 exit WG08-25 Waveguide.
This is a top-of-the-line mids & highs horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.
- Crystal clear natural sound with wider response from 1,600 to 20,000 Hz
- Polyimide diaphragm with 1? Voice Coil, providing high output along with excellent efficiency 107 dB Sensitivity
- High Frequency 1? Exit Neo Driver + Mini Horn WG08-25 provides wide coverage range output
- Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
- Neodymium driver mounted on small horn, ideal for tight spaces, Great choice for custom car audio door panels where the space is limited

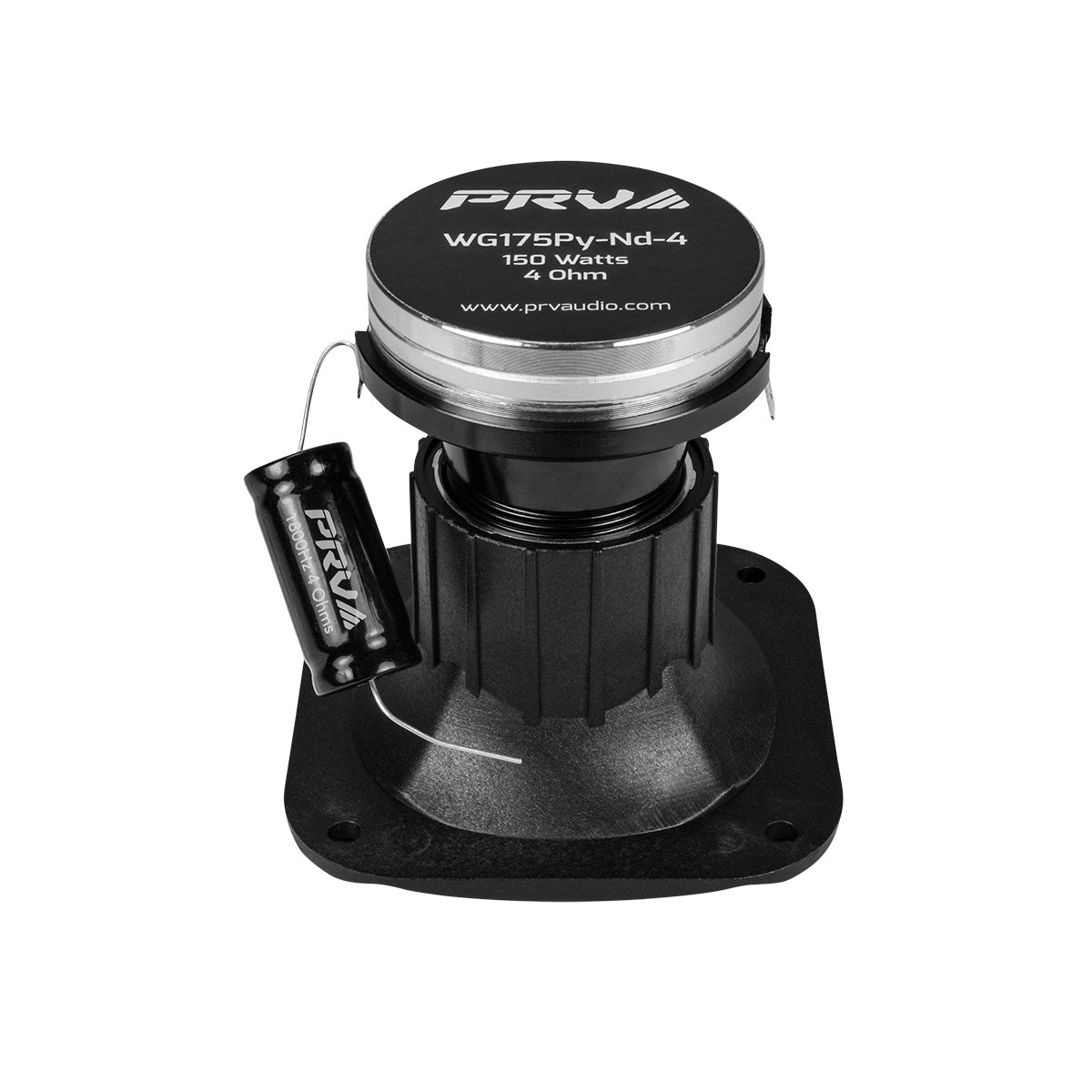

The drivers small magnet diameter allows front mounting, making it easy to install without detaching the driver from the WG08-25 Horn.

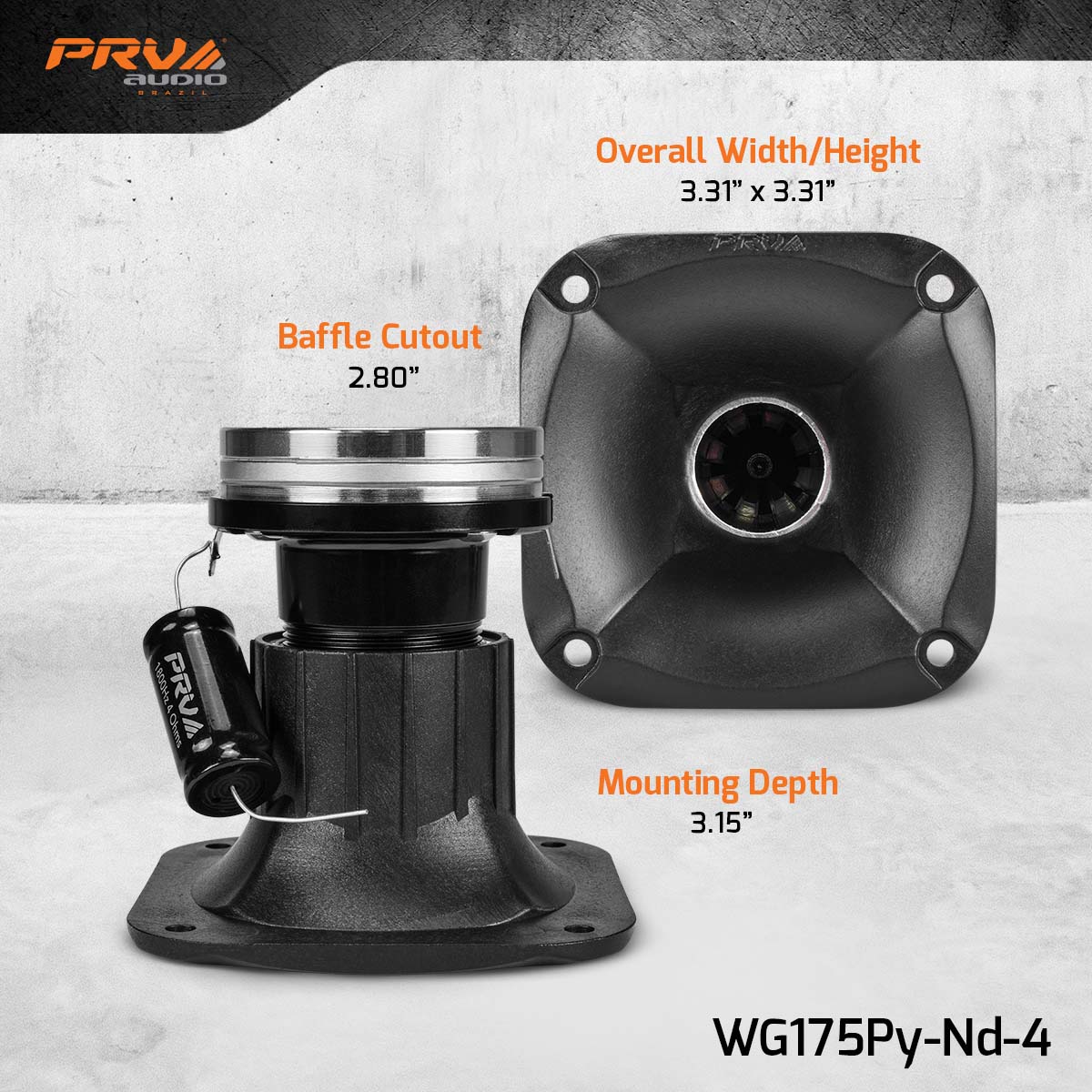

Small 3.31? x 3.31? faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
Its design was developed to give custom doors a new solution for a ultra-small horn driver, this mids and highs horn driver possesses extraordinary sensitivity thanks to high strength neodymium magnet.

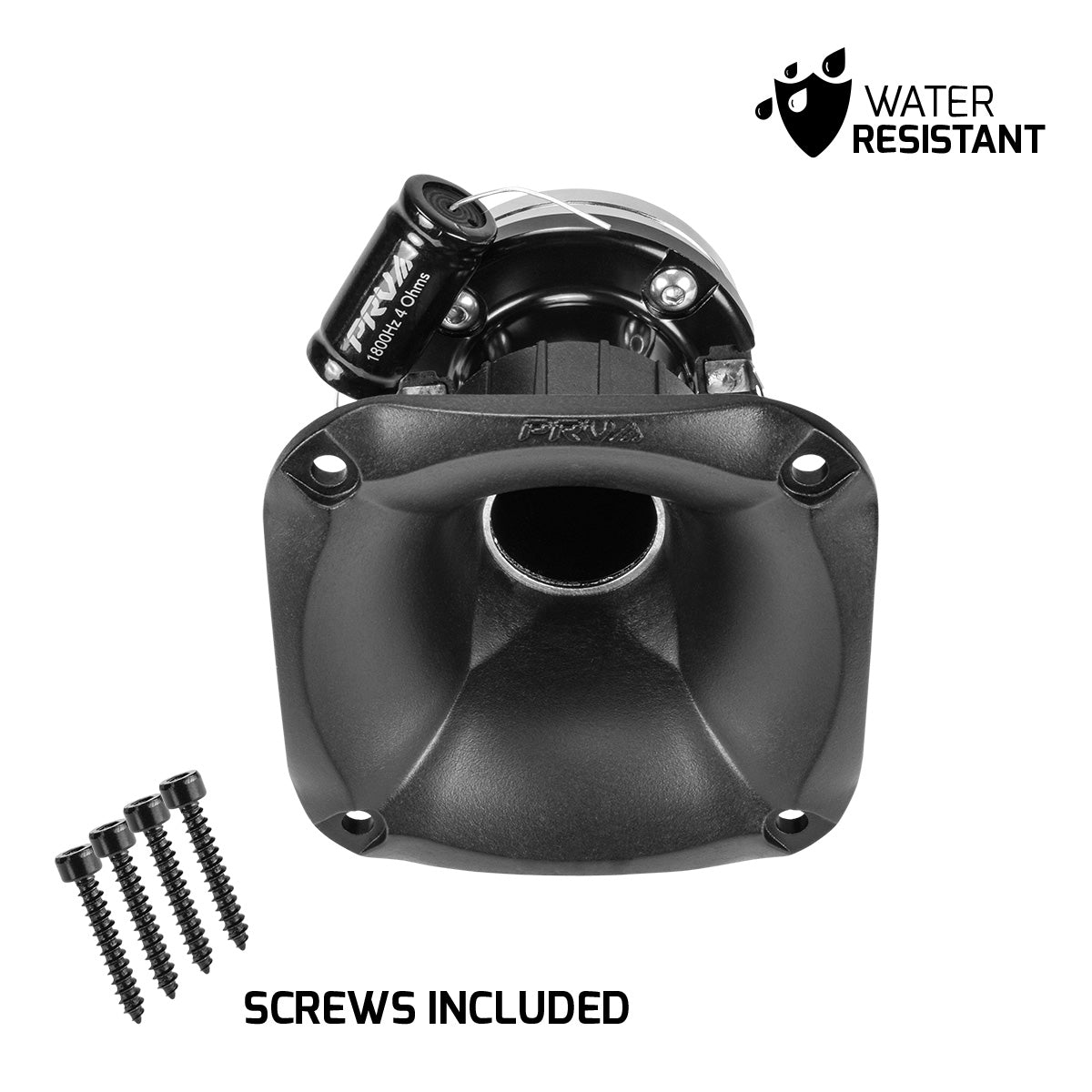

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality.This driver is built to resist the elements, perfect for outdoor use. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
PRV Mini 1? Car Audio Horn Driver WG175Py-Nd-4 Mids and Highs Frequencies 150 Watts 4 Ohm

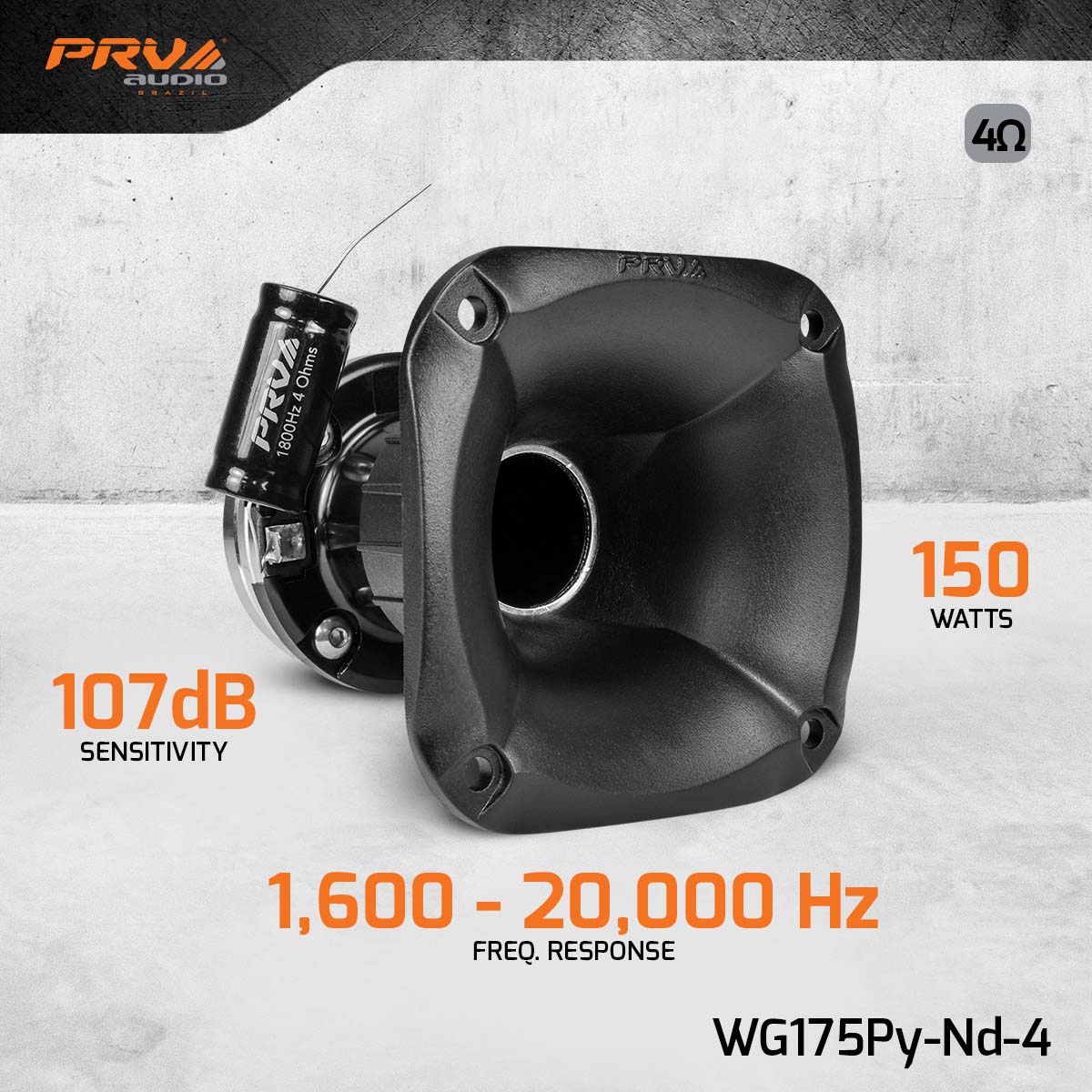

GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 75 Watts |
| Continuous Program Power(RMS)** | 150 Watts |
| Max Peak Power*** | 300 Watts |
| Sensitivity 2.00V at 1m | 107 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 1800 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 1,600 20,000 Hz |
| Voice Coil Diameter | 1 (25.4mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 2.25 T |
| Magnet Material | Neodymium |
