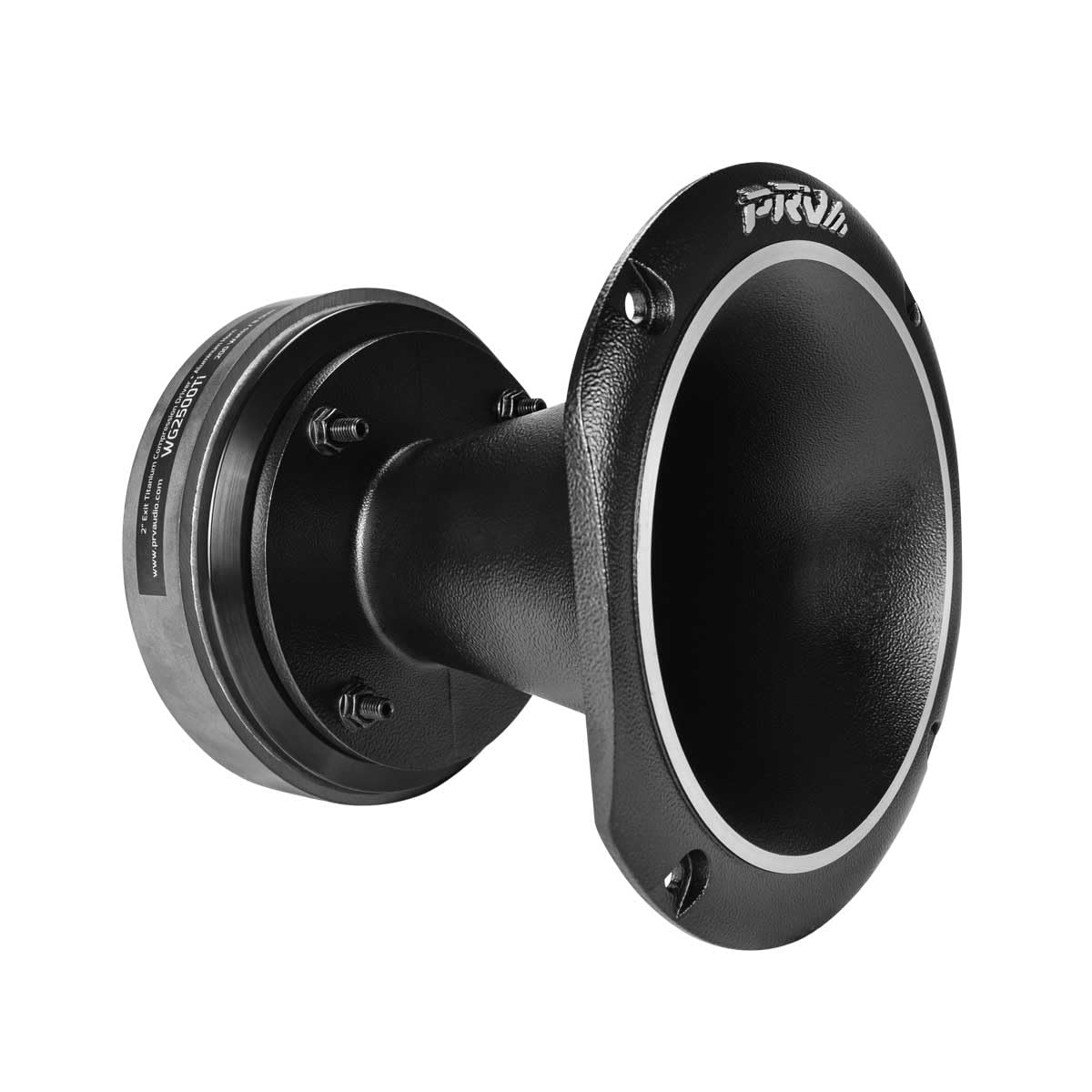

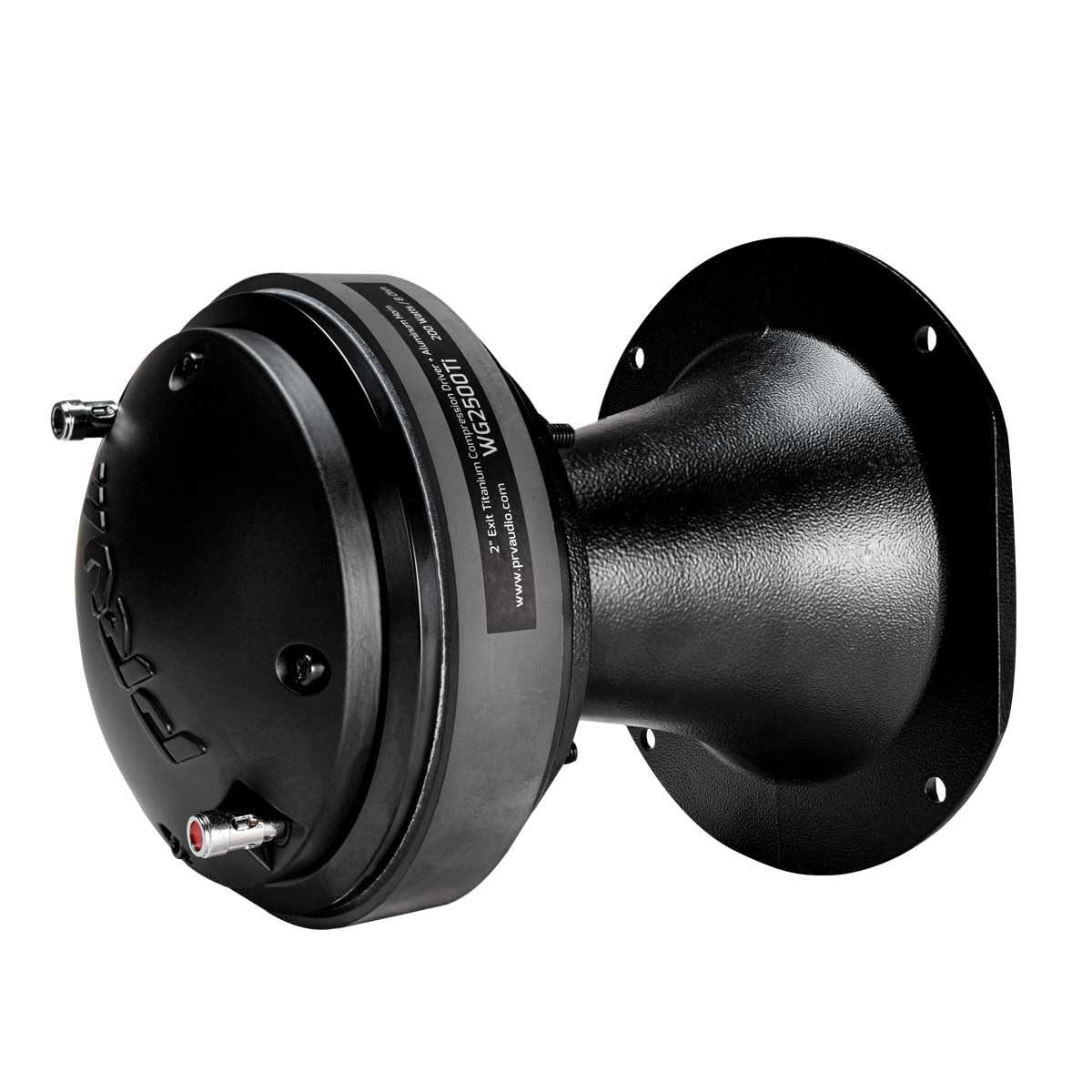

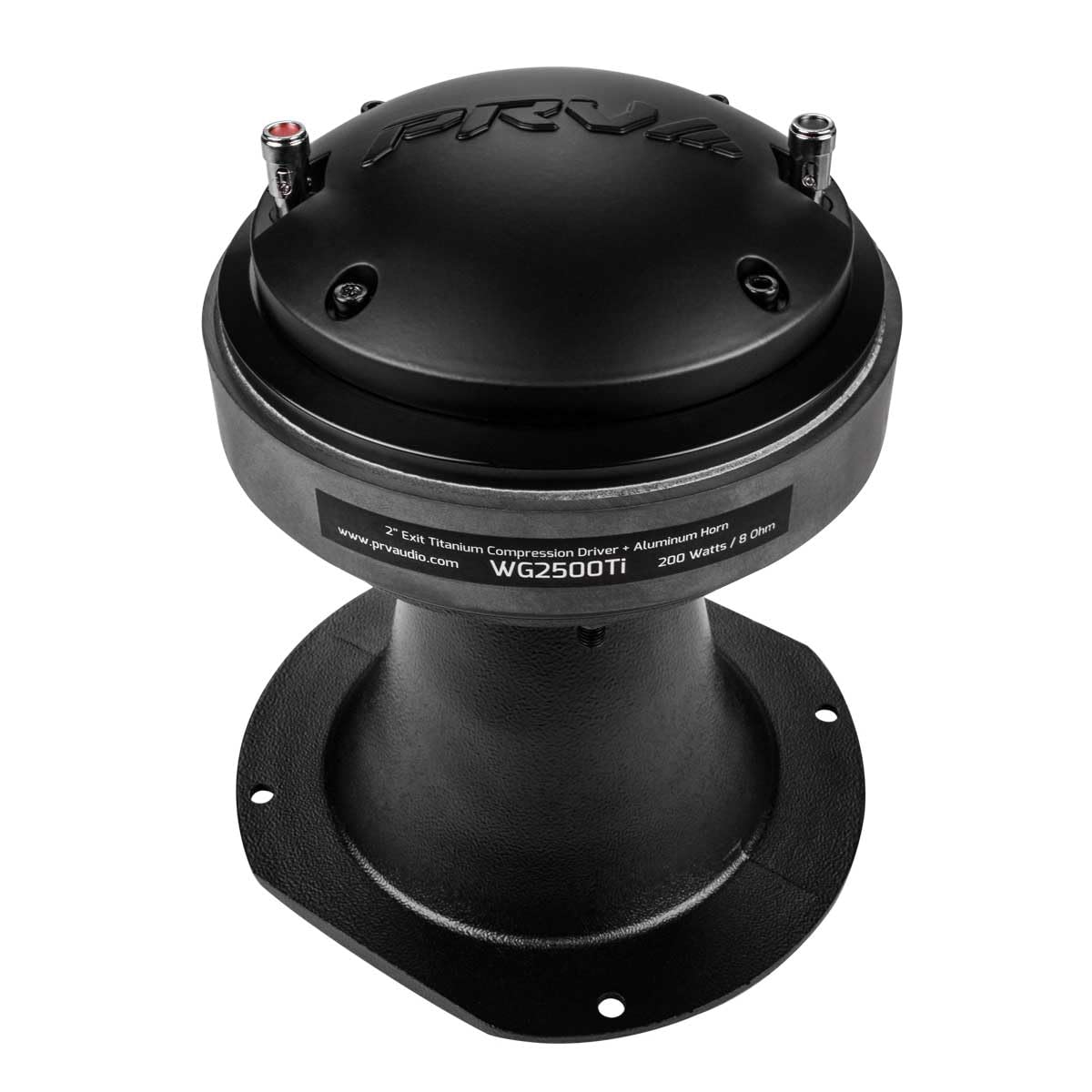

PRV Audio WG2500Ti 2" Exit High Frequency Compression Driver With Horn
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features

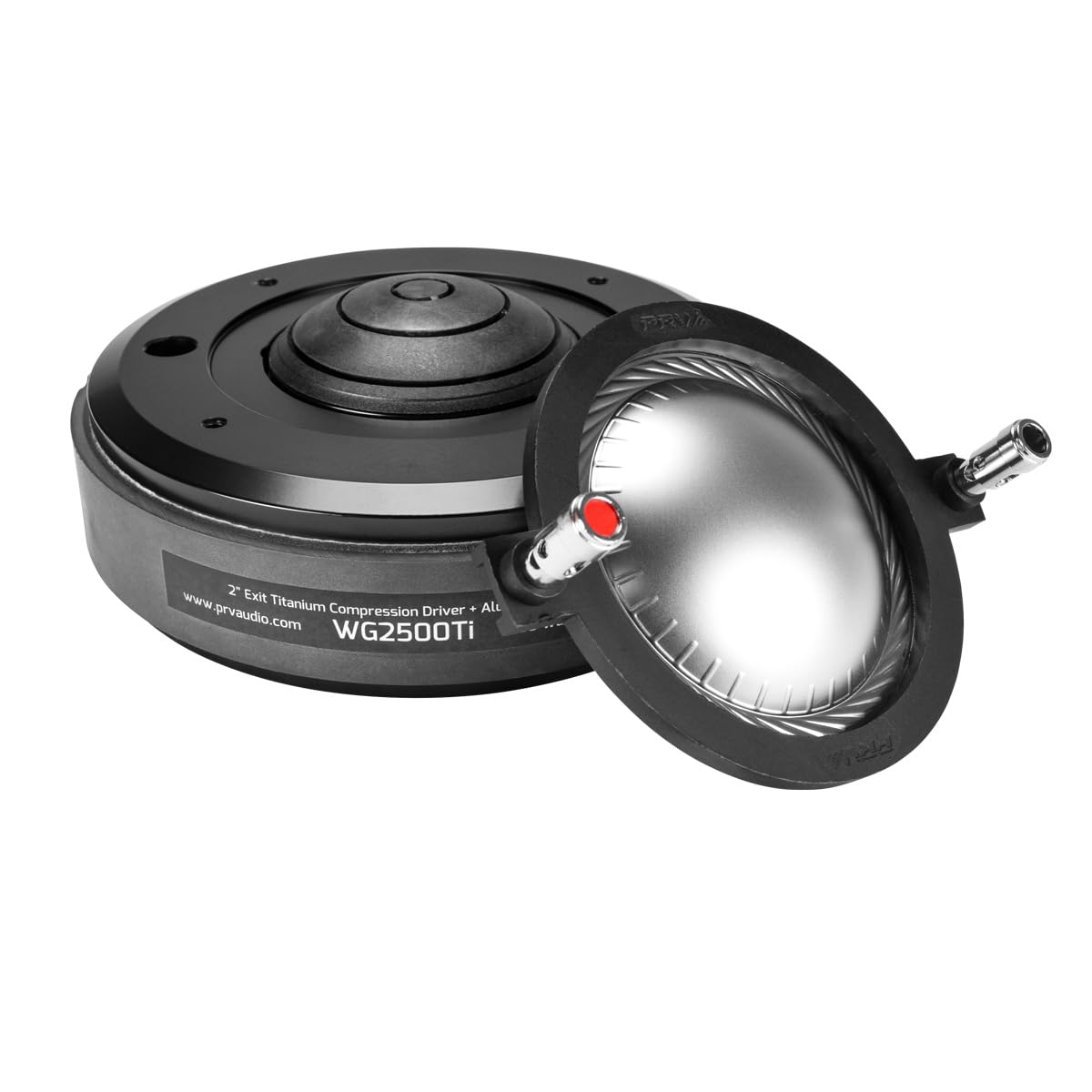

The WG2500Ti is a unique combo featuring a Titanium Pro Audio compression driver with a 2 exit waveguide that features a special 2.5 size voice coil allowing accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.
Highlights
- 2? Exit Titanium diaphragm with 2.5? Voice coil
- Type: Combo Driver + Horn WG14-50CR
- Nominal Impedance: 8 Ohm
- 200 Watts Continuous Program Power (RMS)
- Extremely high efficiency is perfect for high output systems

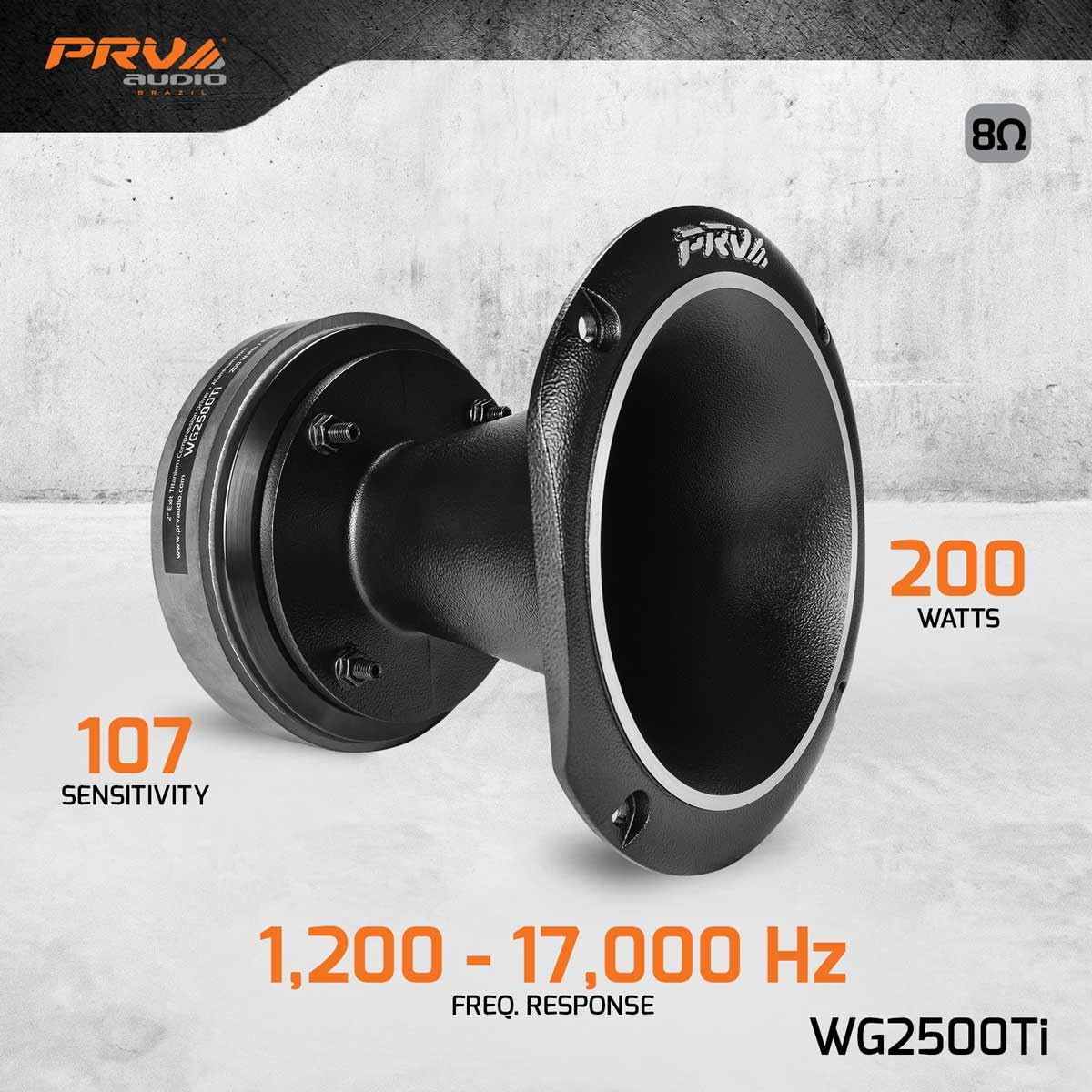

GENERAL SPECIFICATIONS
Exit Throat Diameter | 2 (50 mm) |
Nominal Impedance | 8 Ohm |
Nominal Power Handling* | 100 Watts |
Continuous Power Handling (RMS)** | 200 Watts |
Max Peak Power*** | 400 Watts |
Sensitivity 2.83V at 1m | 107 dB |
Recommended Hi Pass Crossover For Full Power Handling | 1700 Hz 12db Per Octave Crossover |
Frequency Response at -10dB | 1,200 17,000 Hz |
Voice Coil Diameter | 2.5? (65 mm) |
Voice Coil Wire | CCAW |
Voice Coil Former Material | Kapton |
Diaphragm Material | Titanium |
Flux Density | 21.1 T |
Magnet Material | Ferrite |
EXTRA INFO

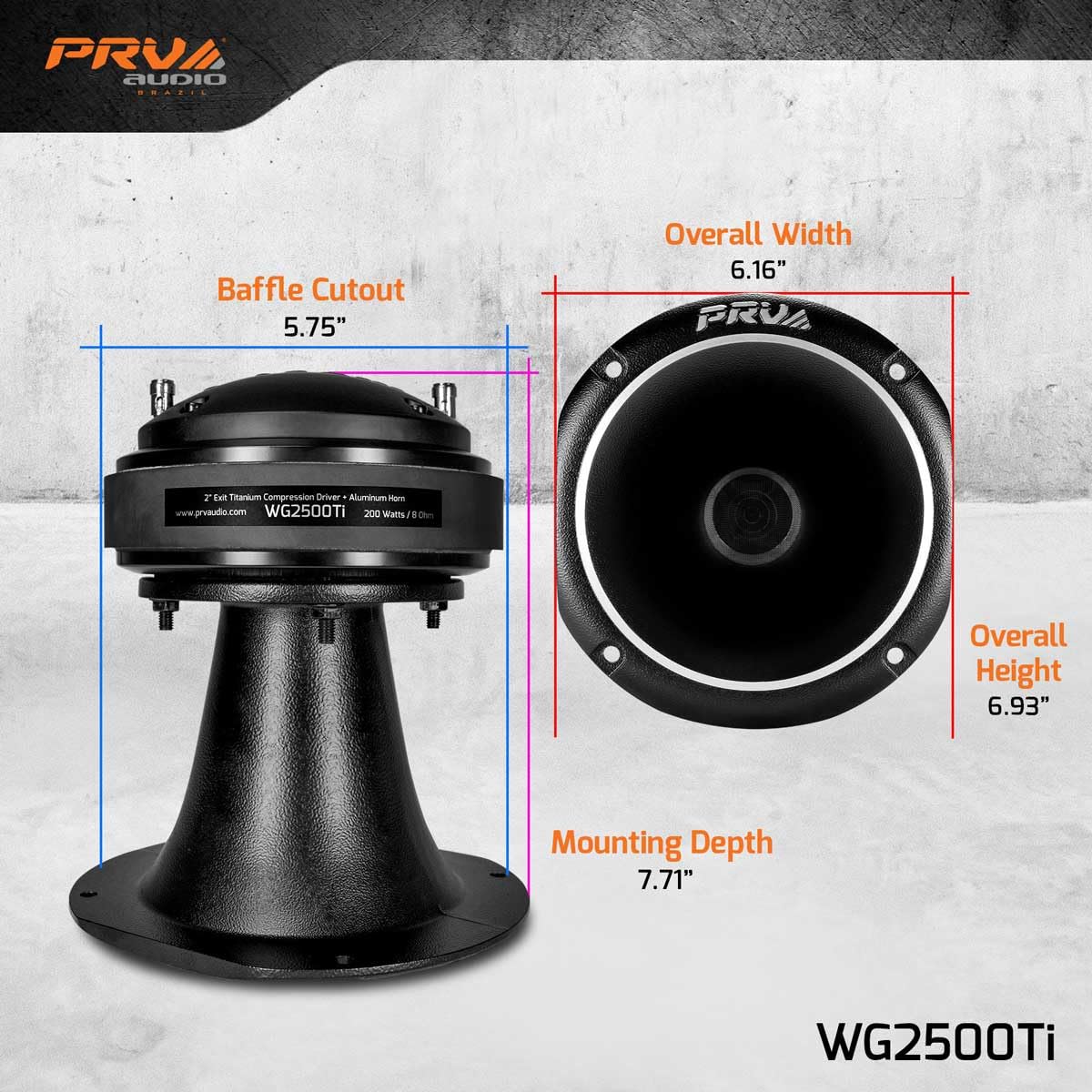

Overall Depth | 8.07 (205 mm) |
Mounting Depth | 7.71 (196 mm) |
Overall Width | 6.16? (156.5 mm) |
Overall Height | 6.93?(176mm) |
Baffle Cutout | 5.75 (146 mm) |
Net Weight | 10.32lbs (4.68 kg) |
Shipping Weight | 11.02lbs (5.00 kg) |
Carton Dimensions W x L x H | 8.26 x 7.58 x 9.45 (210 x 190 x 240 mm) |
