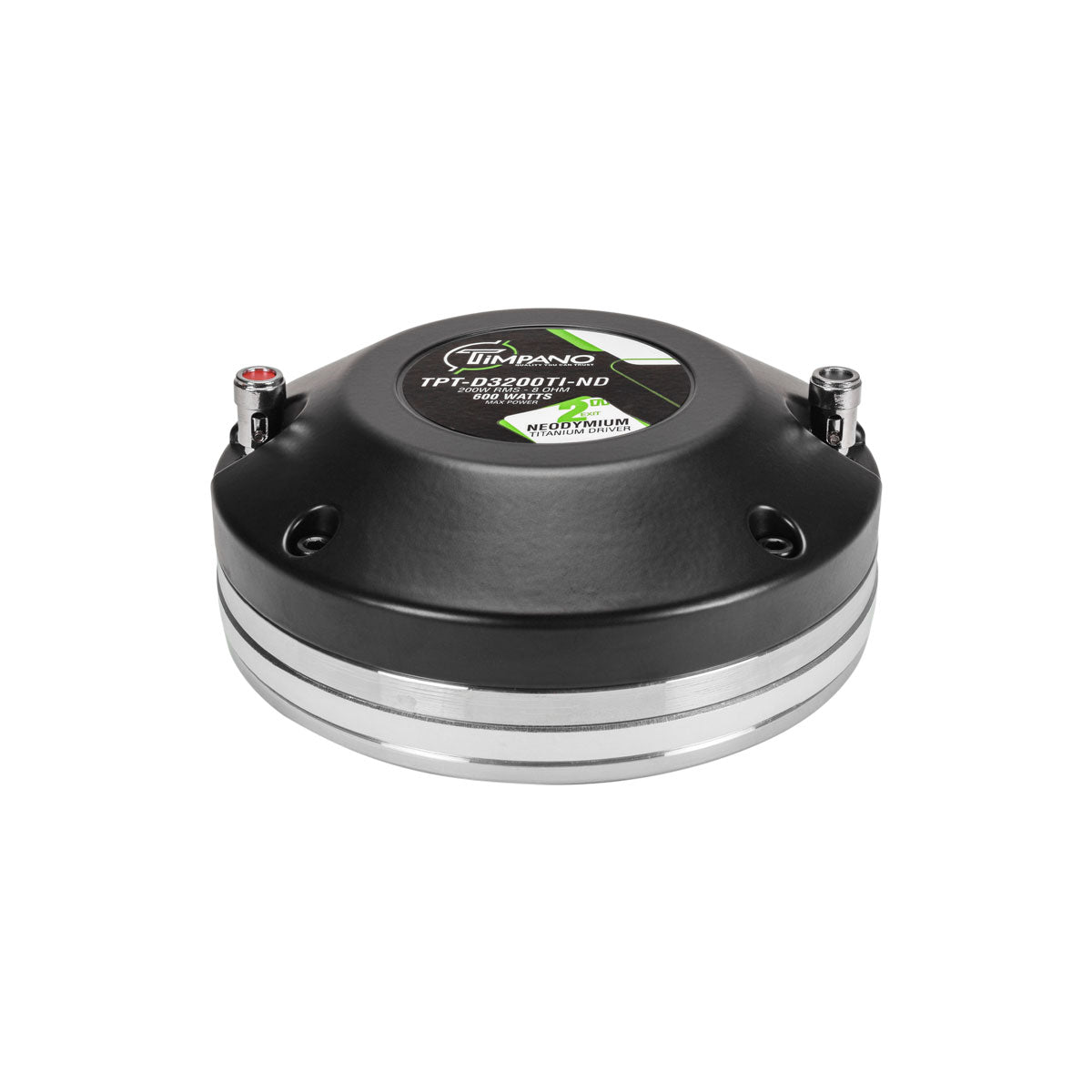

Timpano Audio TPT-D3200TI-ND 2" Exit Neodymium Titanium Compression Driver
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
TPT-D3200TI-ND 2? Exit Neodymium Titanium Compression Driver
For a high output compression driver to be used for the critical mid range high (vocals), choose Timpanos D3200TI-ND titanium compression driver. A neodymium motor focuses magnet flux into the gap while keeping driver weight below 3.92 pounds.
- Titanium diaphragm with a large 3? voice coil
- Impressive 110 dB sensitivity High output high frequency driver
- Powerful and lightweight option for custom doors with TPT-HL14-50 Slim Horn
Compression horn driver uses a neodymium ring motor design to pack as much BL product into the voice coil gap as possible. When combined with the titanium dome diaphragm, to produce crisp sound over a broad range (from 1,200 to 18,000 Hz) with an emphasis on the critical mid range high range.
The high energy motor is also response for output up to 110 dB with only one watt of input power. Designed and Engineered by PRV Audio Group.

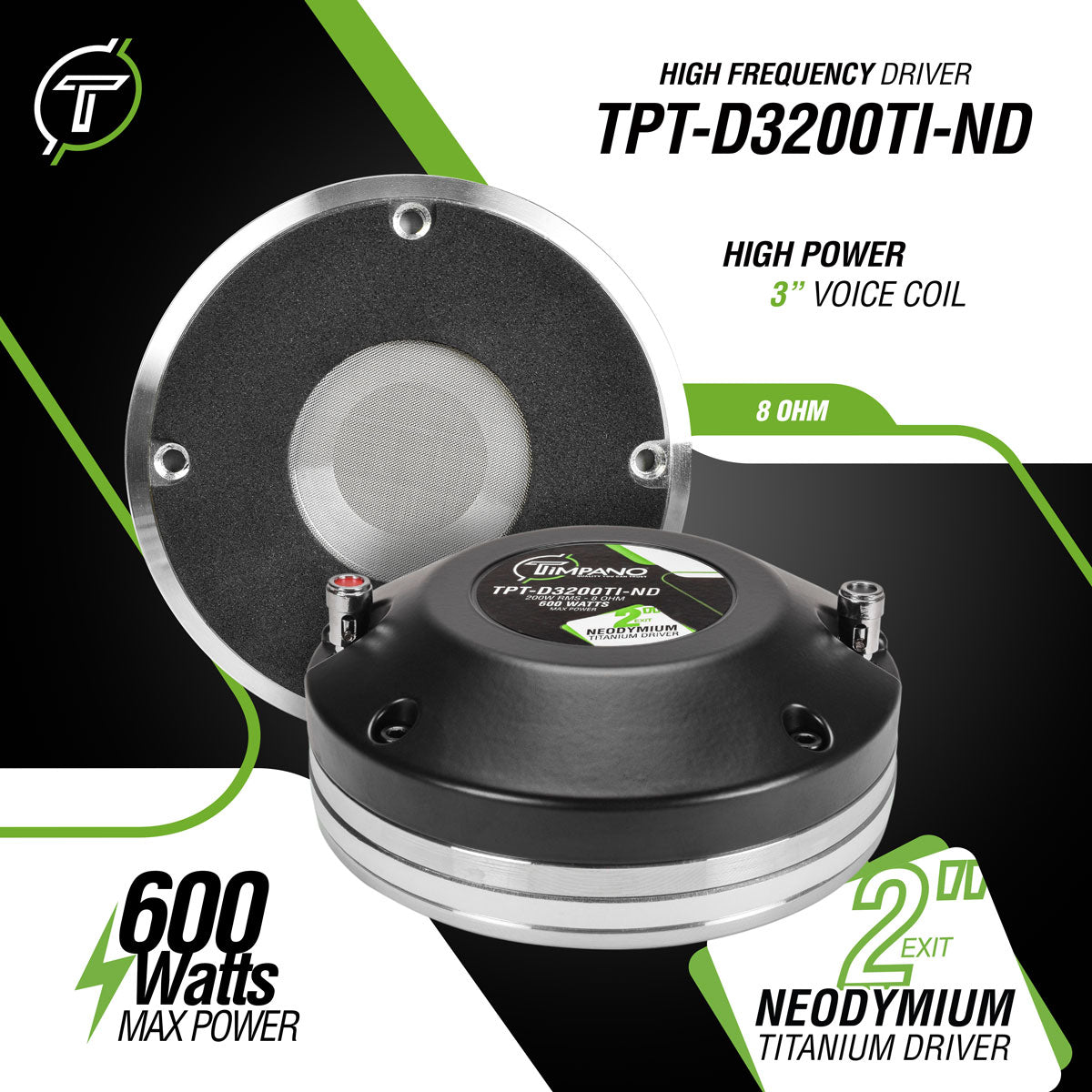

Specs:
600 Watts Max Power
200 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 110 dB
Frequency Response: 1600Hz 19000Hz
2? Exit Throat Diameter
3? Voice Coil
Titanium Diaphragm
Recommended High Pass Filter:
1400 Hz under 300 Watts of Amplifier RMS Power with 18dB Slope
1600 Hz under 200 Watts of Amplifier RMS Power with 12dB Slope

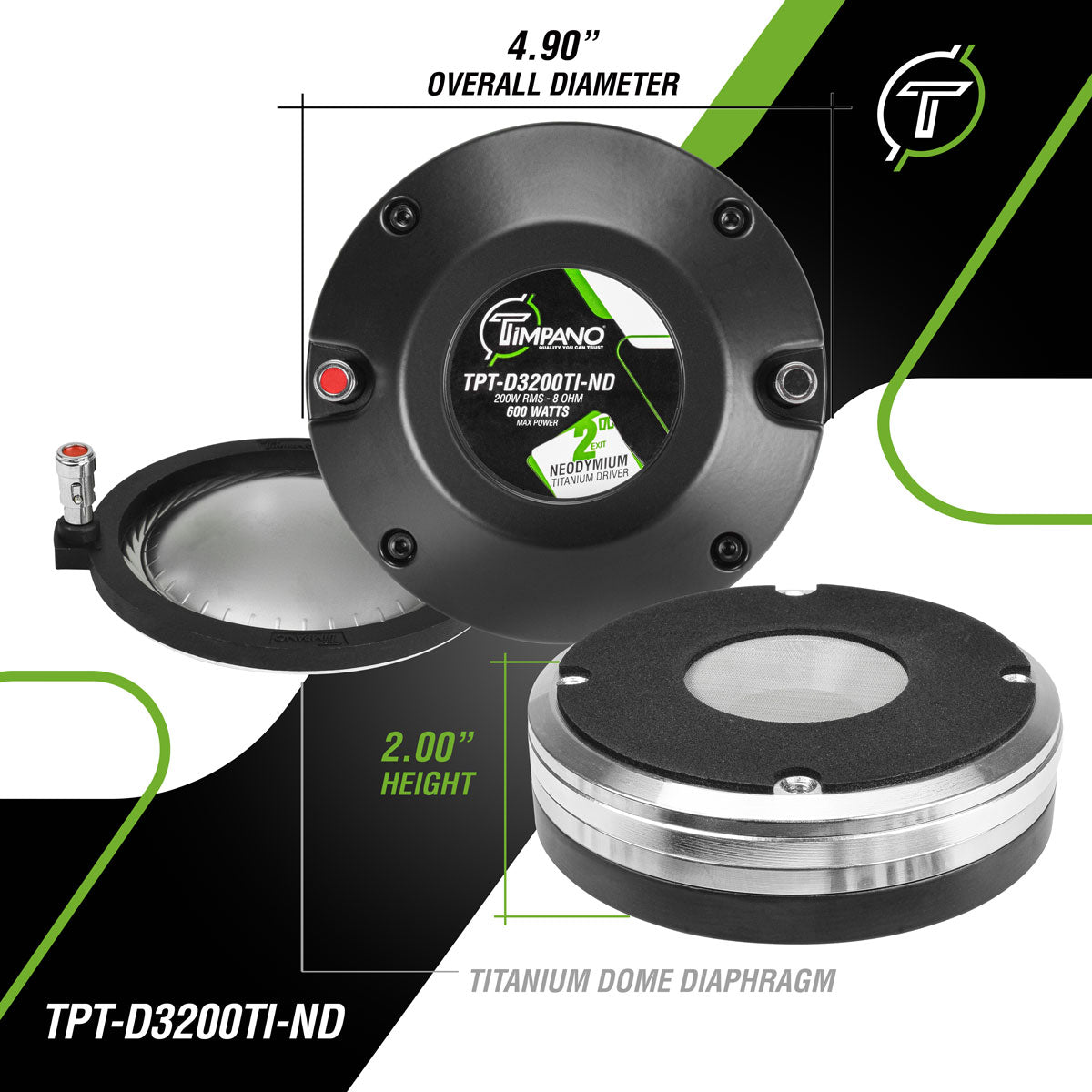

Sizing:
Overall Size: 4.90? x 4.90? x 2.00? Height
Weight: 3.92 Lbs
Original Manufacturer Replacement Diaphragms that Maintain Peak Performance are available:
TPT-RPD3200TI-ND
